Rear Diffuser
The rear diffuser was a fine piece of Eric's work, scaled perfectly from the model. Here's the first step.
.jpg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:1209,h:1612)

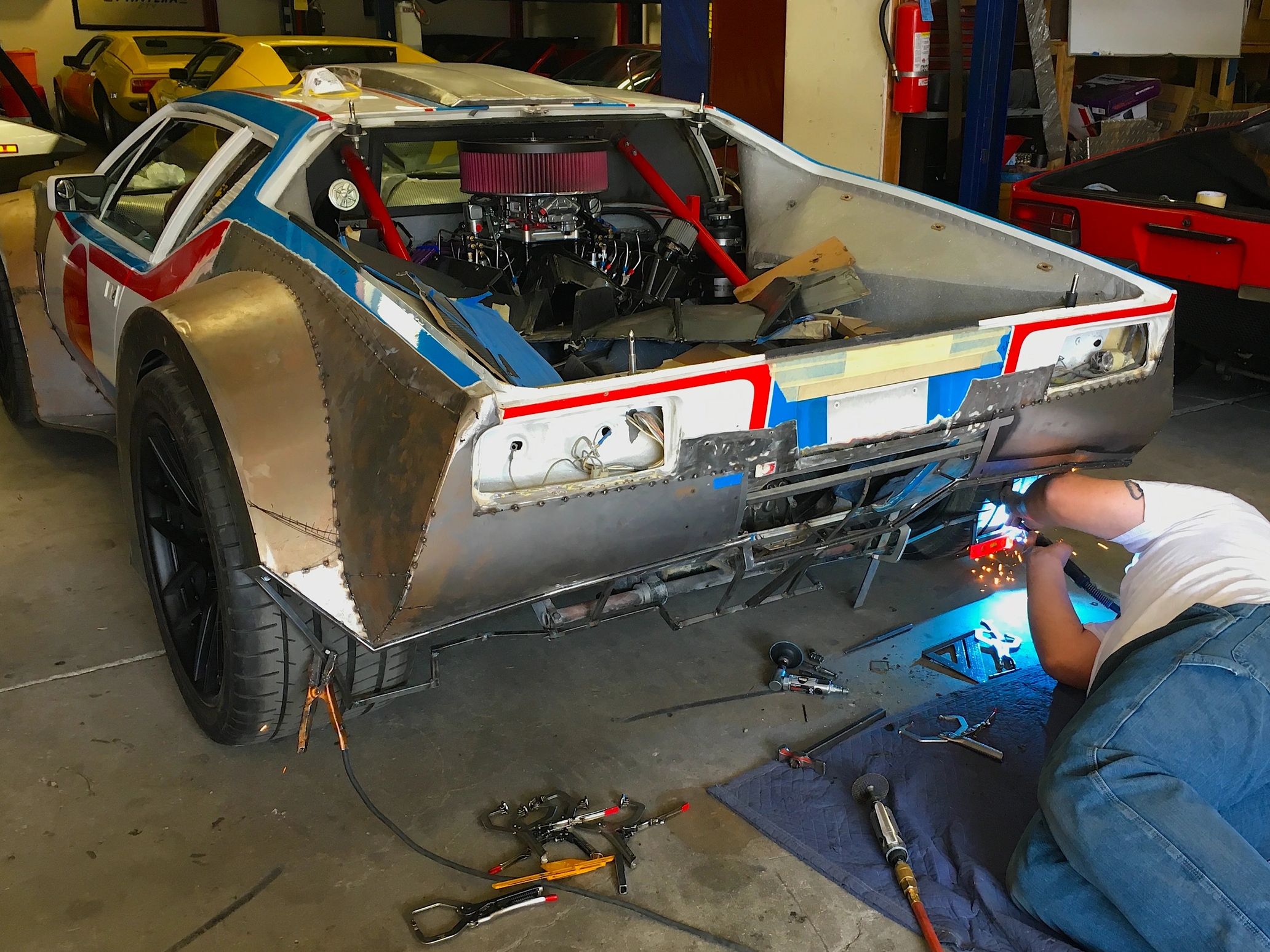

The real genius work was the frame Eric made.
.jpg/:/cr=t:5.47%25,l:4.42%25,w:80.65%25,h:80.65%25/rs=w:1209,h:907)

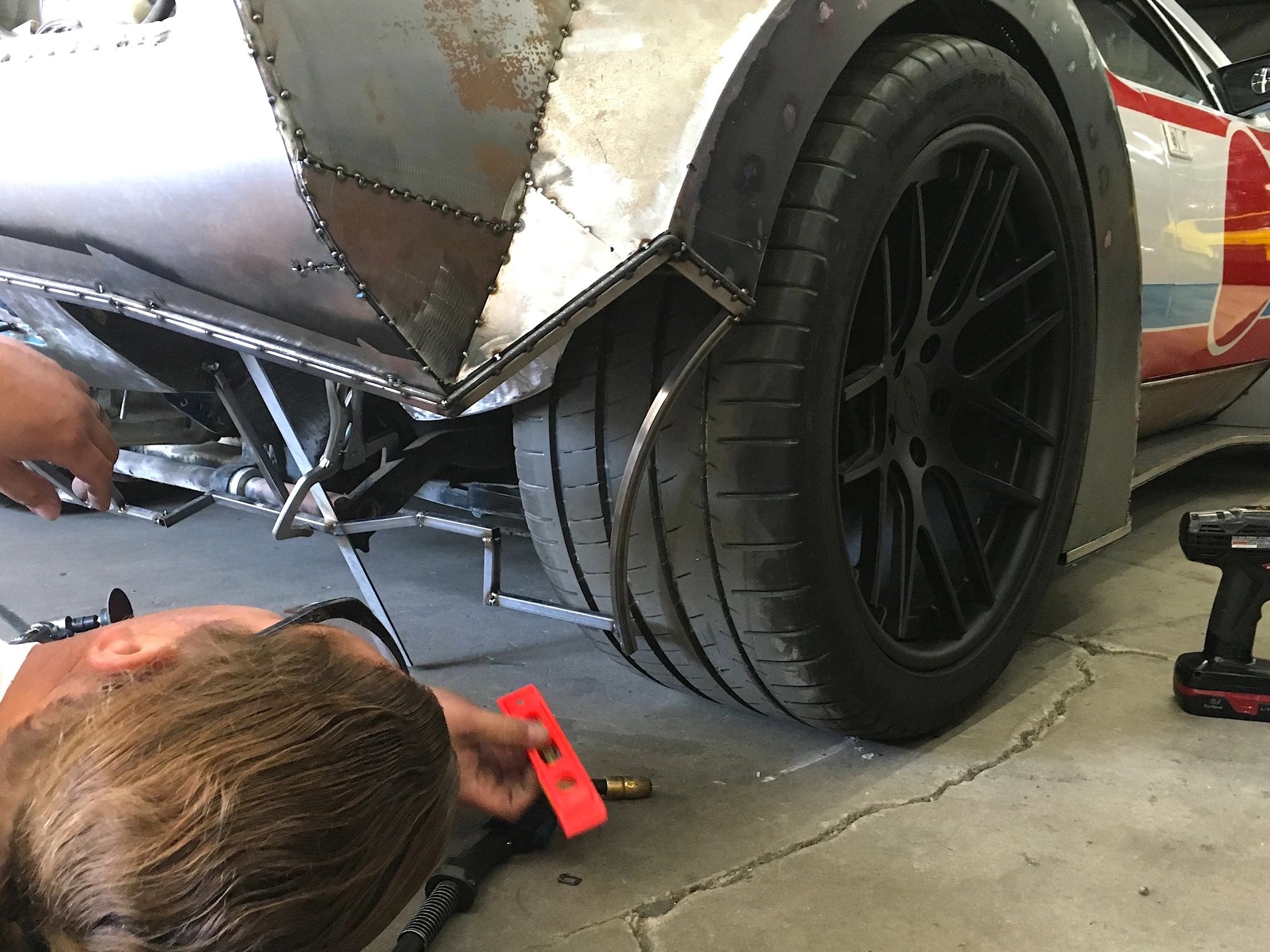

Getting it fit right was key as it would be supporting much of the exhaust plumbing.
.jpg/:/cr=t:6.4%25,l:9.27%25,w:80.65%25,h:80.65%25/rs=w:1209,h:907)
This is something the factory in Modena would have had a hard time reproducing.
.jpg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:1209)
The fins were framed then skinned. A surprisingly quick piece of work.
.jpg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:1209,h:1613)
Here's one of the two halfs of the diffuser.
